Actually then the bringing all a room laboratory electronic bulky into inside pocket pants no longer is story science fiction anymore. When I first time touch hand into application, feeling excited exactly like when holding piece soldering iron first, but clean and “high-end” more much. PROTO – circuit simulator not simply is a tool drawing circuit static; it is a program simulation real time full vivid, where the currents run zigzag and the bulbs LED bright up right under fingertips you. If you ever obsessed with fact burning components or exploding capacitors life real, application this exactly is “zone safety” great most for you freely tinker and creative.
REAL-TIME CIRCUIT SIMULATION
Point money-making most of application lies at capability calculation instantaneous, allowing you observe every development electrical without have delay. I feel fact understanding about law Ohm or Kirchhoff become intuitive more than ever when seeing the particles electric charge move through each piece resistor.
- Animated current flow: The currents are simulated by effect movement extremely eye-catching, helping you identify direction go of current only in a note music.

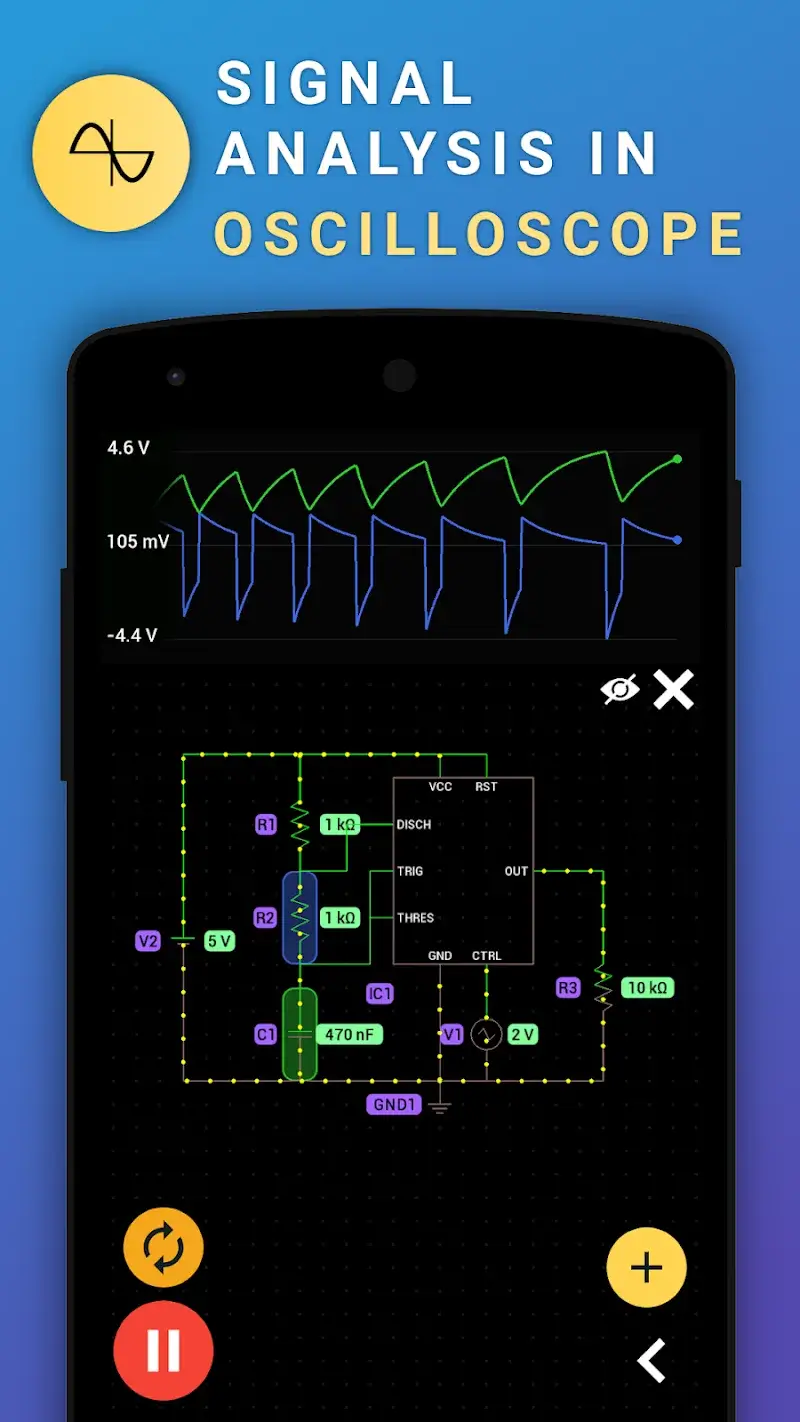

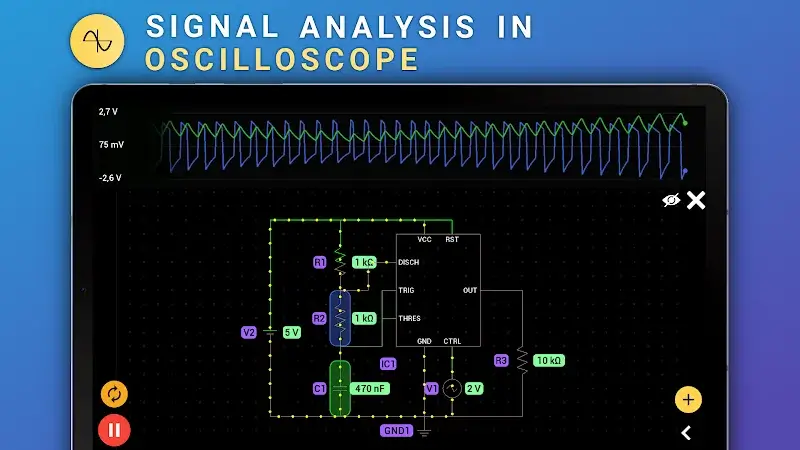

- Four channel oscilloscope: Machine display wave four channels professional helps you monitor same time many signal pulse, from wave shape sine to the types wave sawtooth complex.

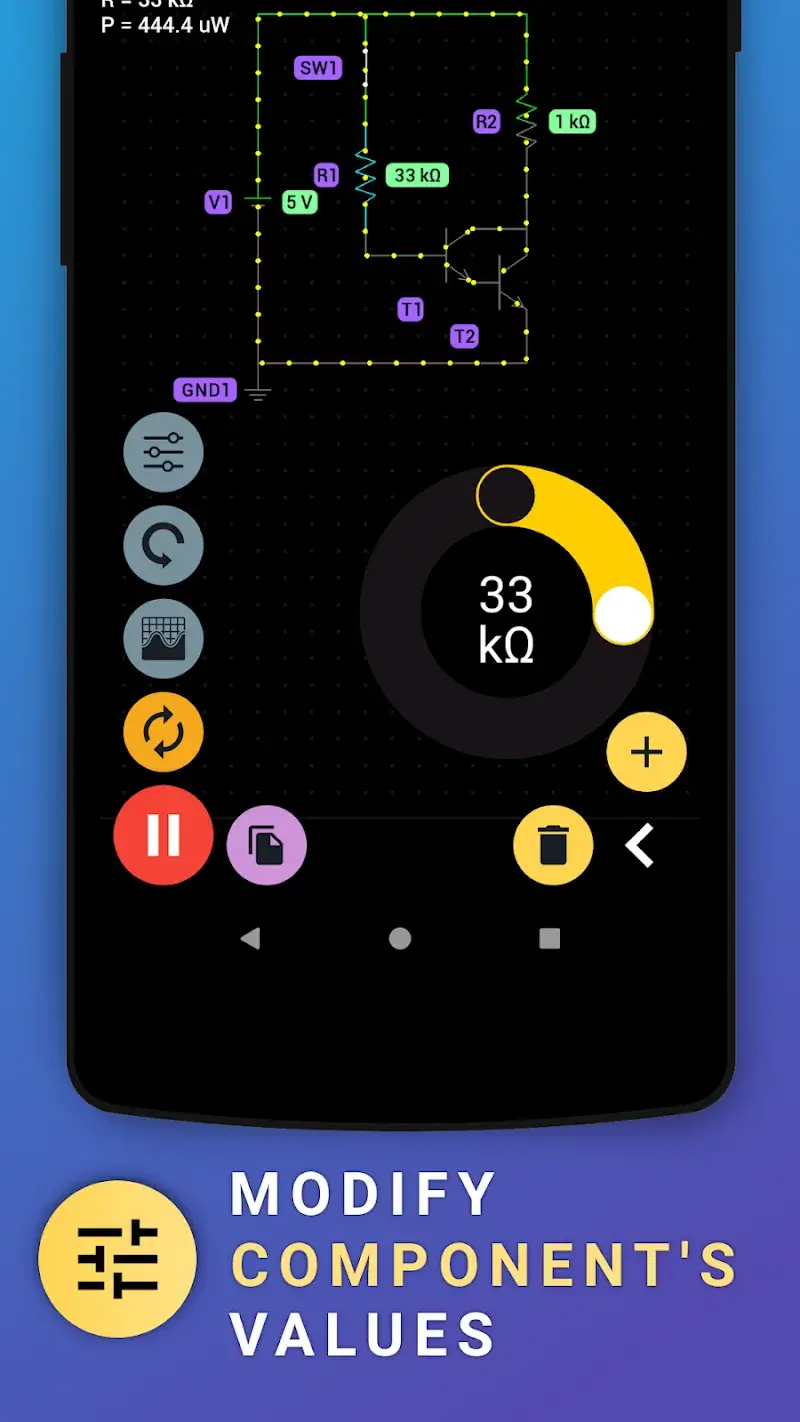

- Live parameter adjustment: You can change value of component right when circuit is running to see reaction instant of system without need press stop.

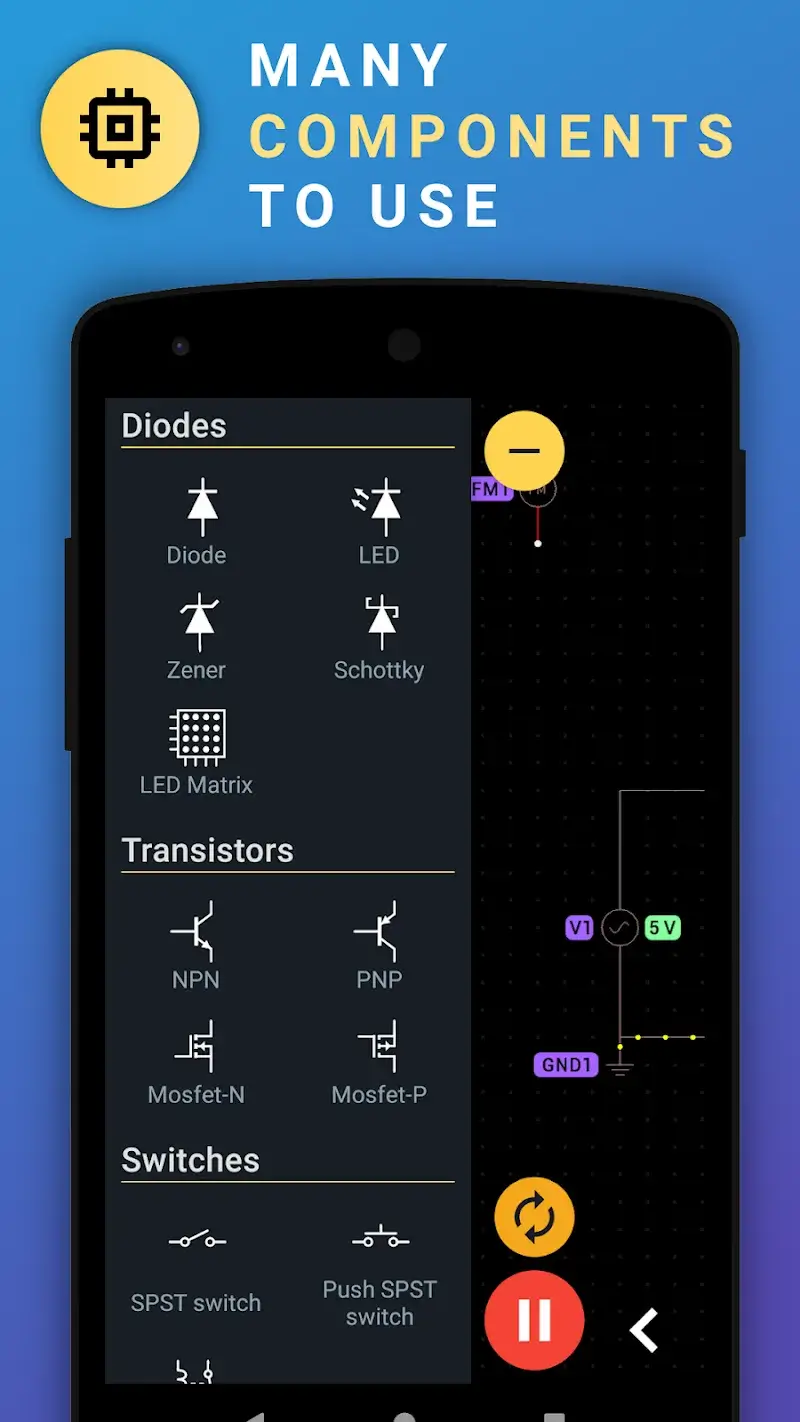

COMPREHENSIVE COMPONENT LIBRARY

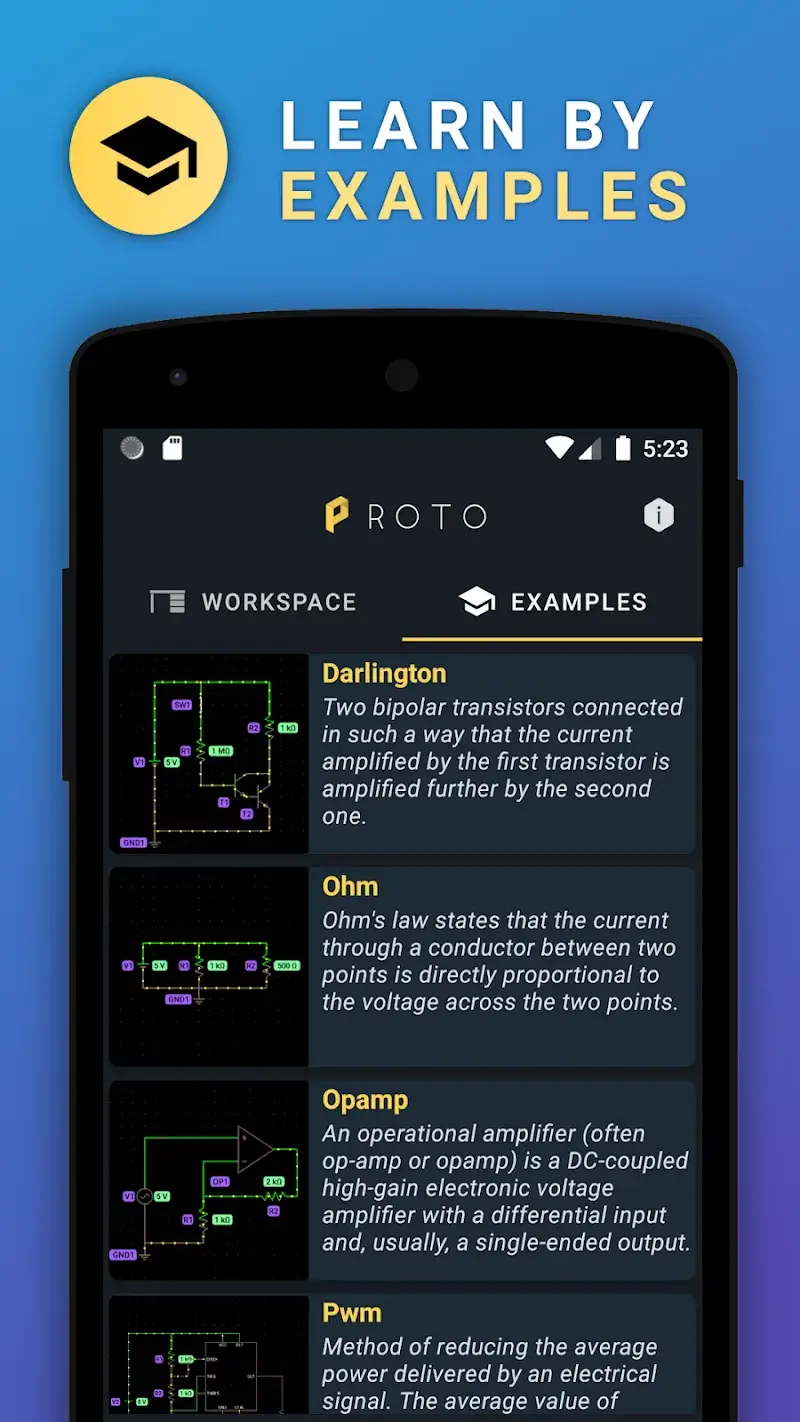

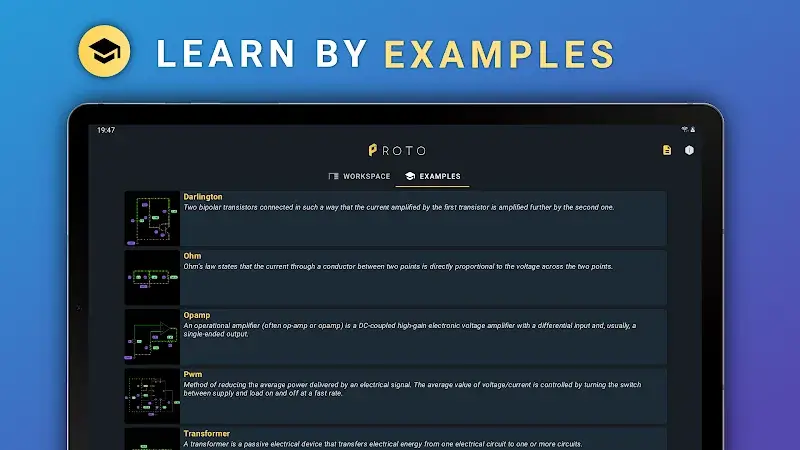

Power of application actually lies at warehouse library components massive, enough strength balance from the exercises basic to the projects research specialized. I have tried assemble a circuit logic complex and actually surprised when application process smoothly from the gates NAND, NOR until the lines chip 7400 TTL or 4000 CMOS famous.
- Diverse logic gates: Provide full the gates logic basic and the sets Flip-flop help you design the systems digital complete like set counter or set decoder 7 segment.
- Mobile sensor integration: A feature extremely unique is you can take advantage sensor light, acceleration or gyroscope of exactly phone to make input for circuit electric.
- JavaScript coding support: For the players system “hardcore”, fact writing code JavaScript directly to control the IC custom opens out capability customization almost infinite.
