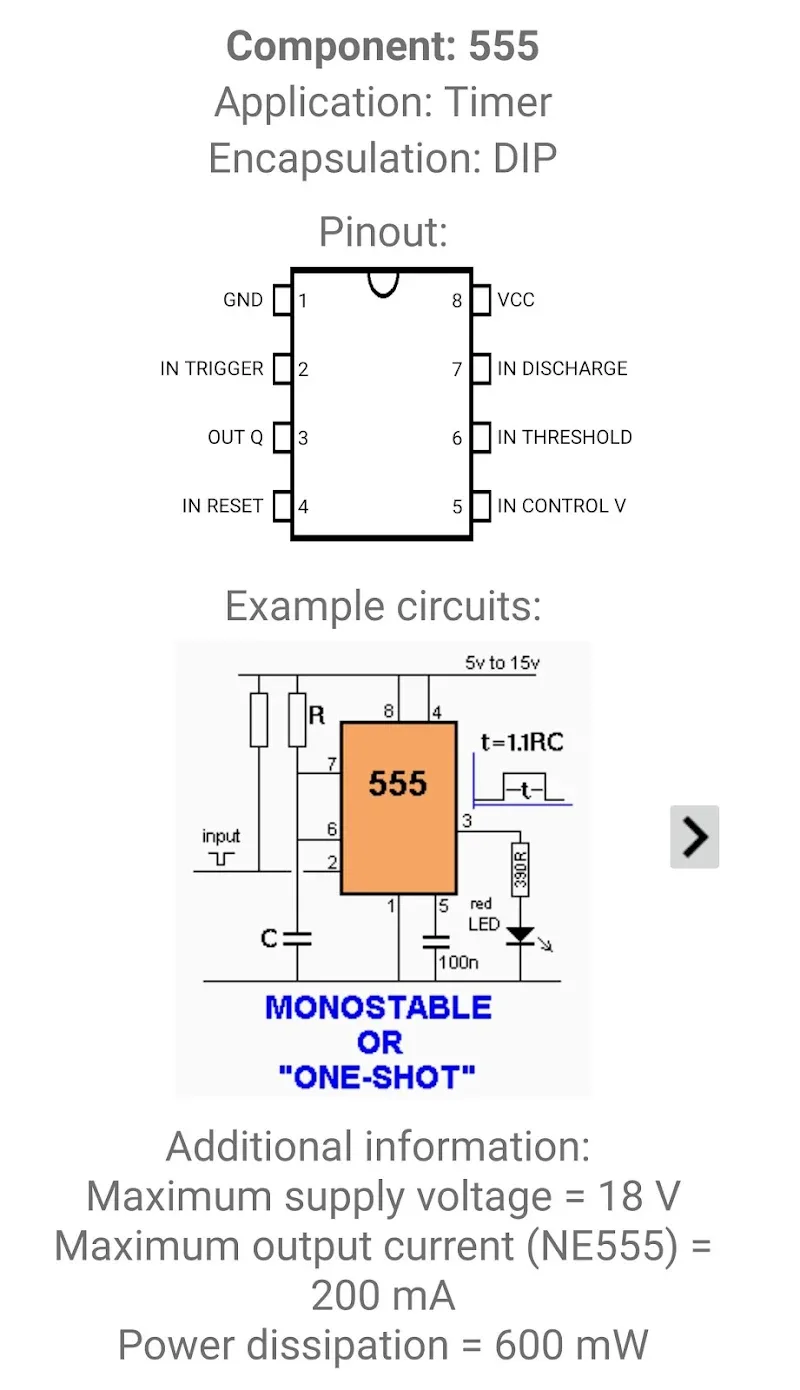

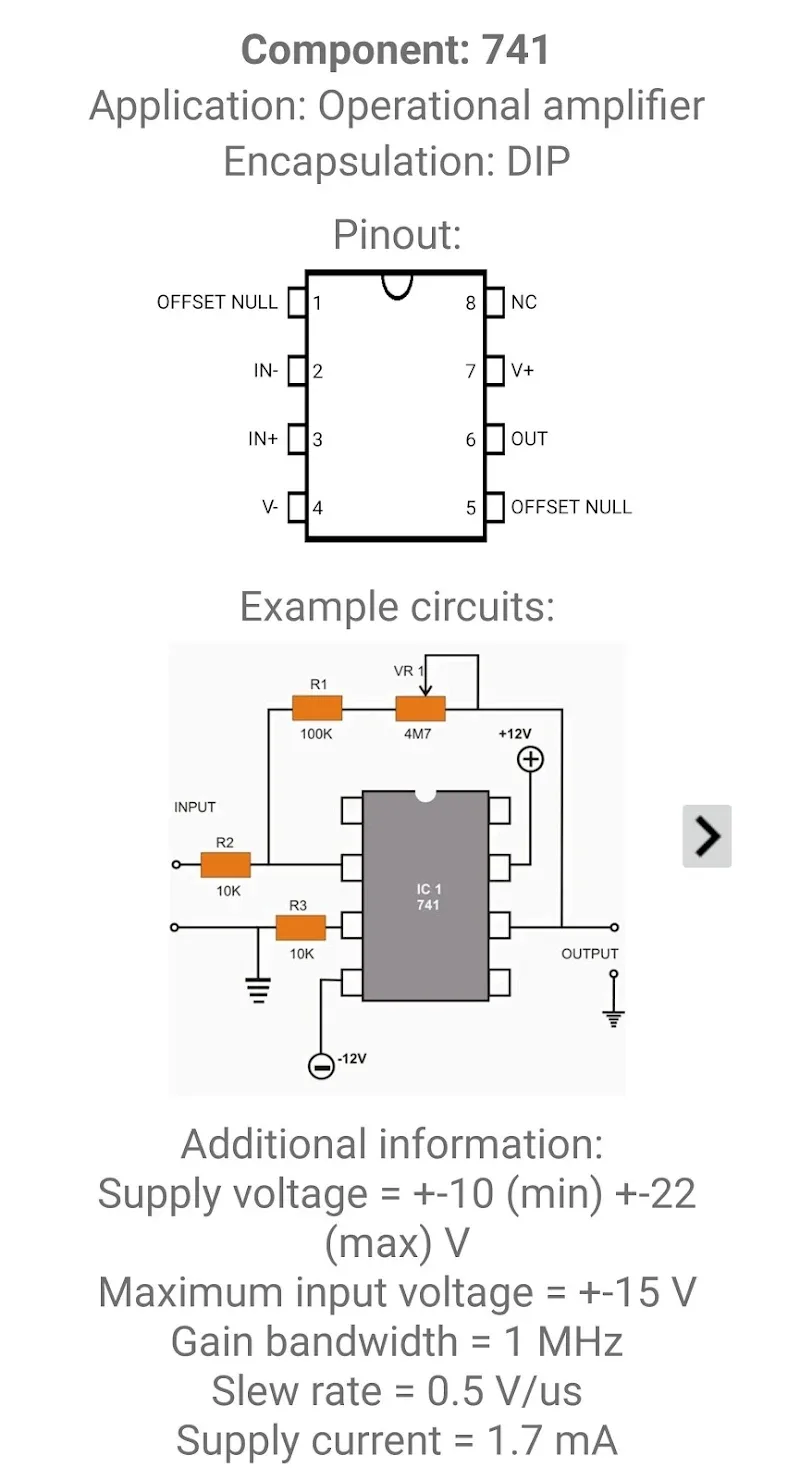

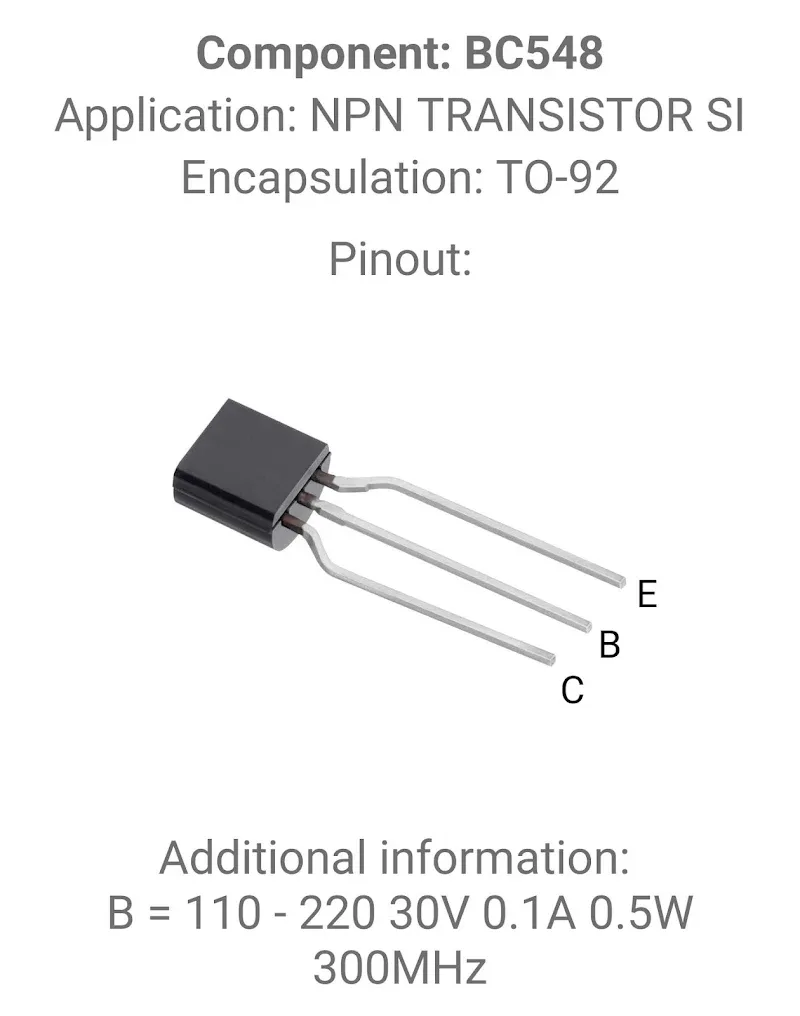

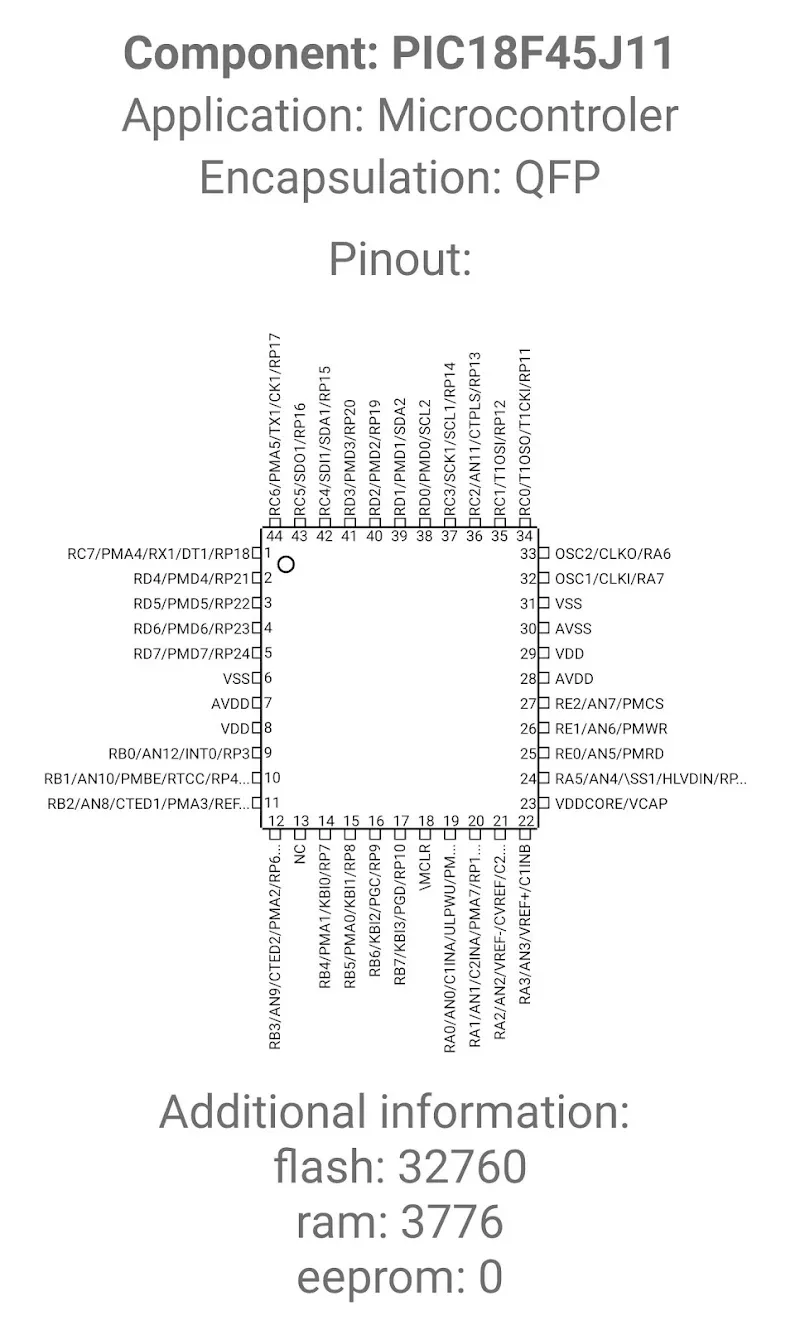

Electronic Component Pinouts is an application designed to help you look up electronic component pinout diagrams without an internet connection, ideal for engineers, electronics enthusiasts, and engineering students.
CONVENIENT FEATURES
The Electronic Component Pinouts application offers many convenient features for users:
- A huge database: This application provides over 80,000 component pinout diagrams, from chips, transistors, diodes, triacs, microprocessors, and many other types.

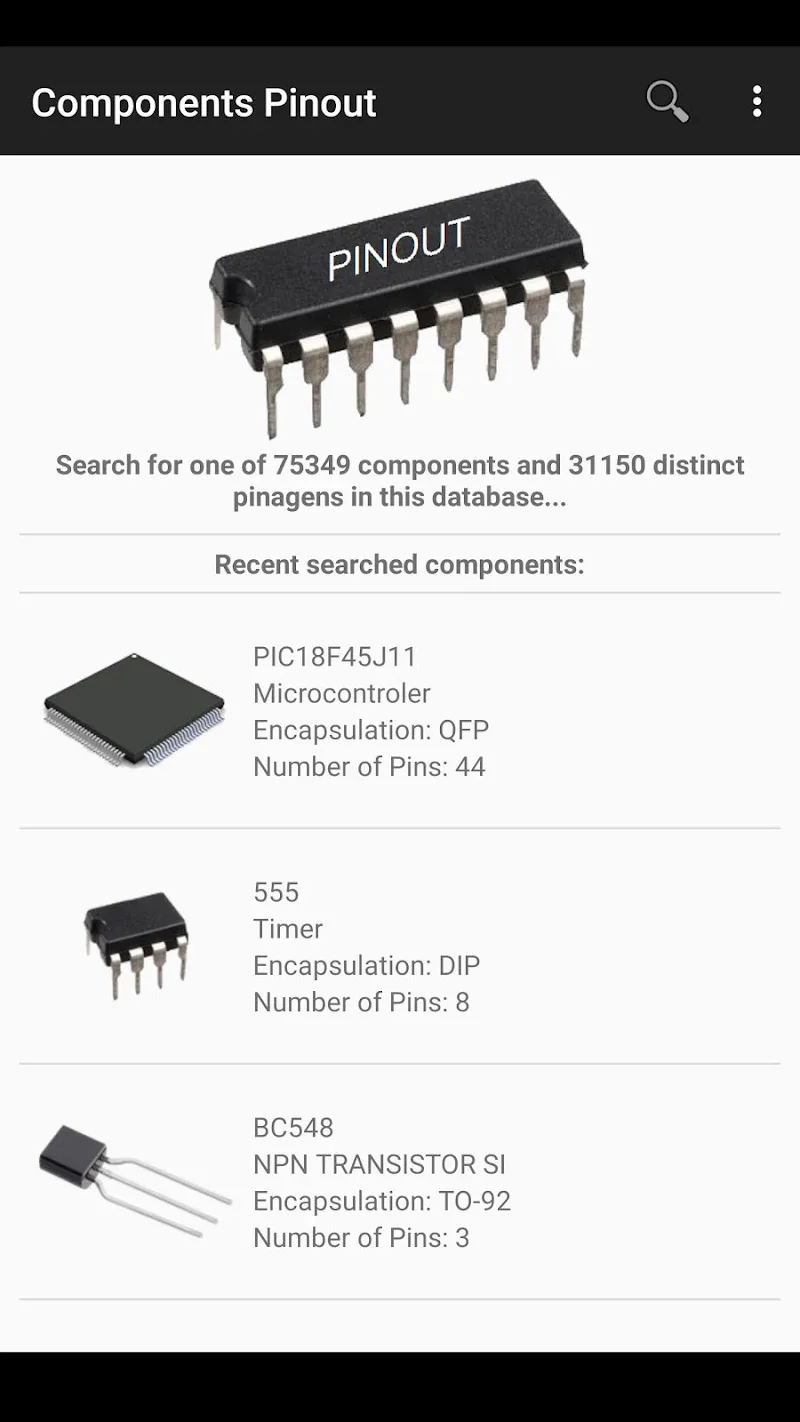

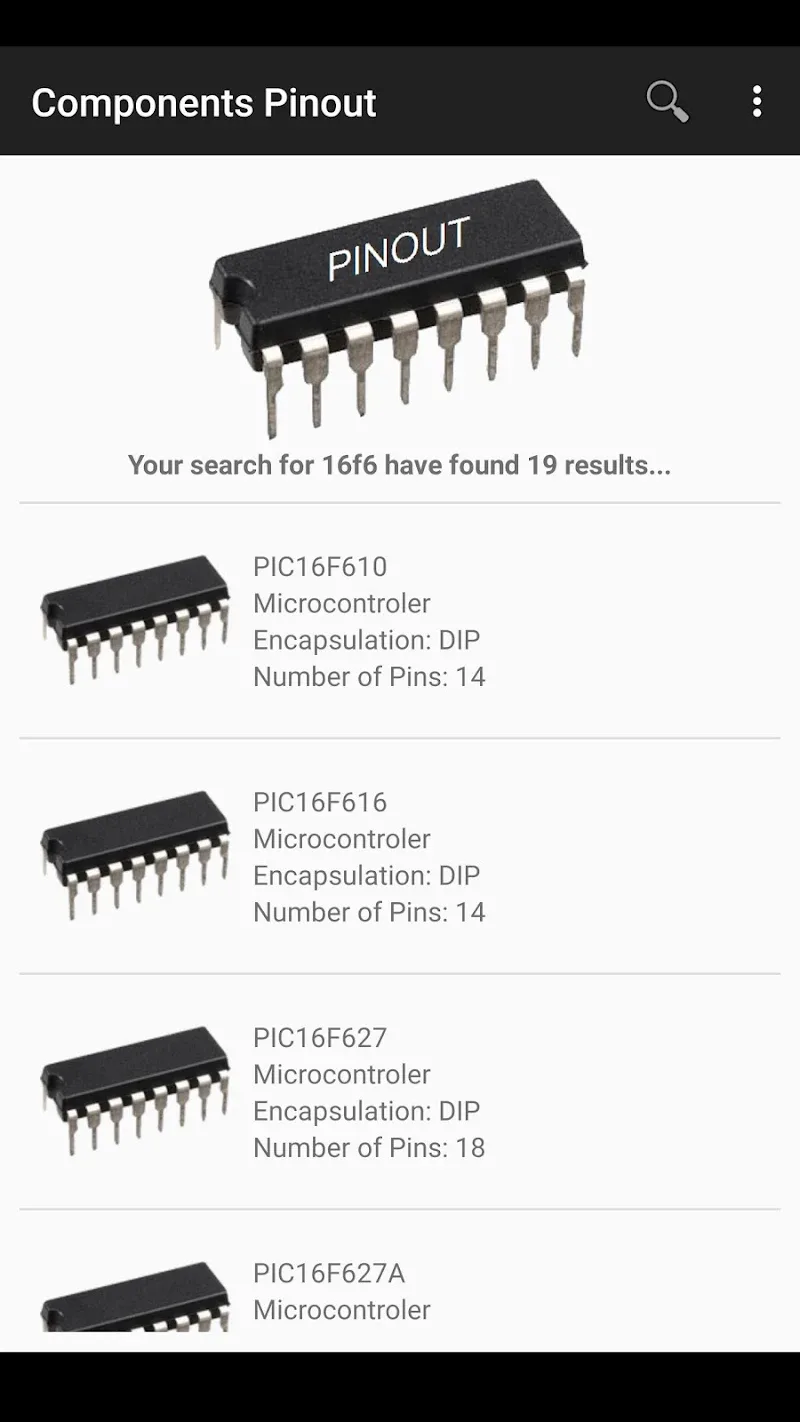

- Integrated fast search feature with over 30,000 variant diagrams and suggestions for equivalent replacement components.
- This application runs completely offline, allowing users to use it comfortably in enclosed workshops or outdoors without fear of disconnection.
- The interface is designed to be clean, user-friendly, and easy to use; users simply type the component name or select the component type to find the results.
- You can also save your favorite schematics for faster lookup later.
- The application is also regularly updated to add the latest components available on the market.
- Users can use it for circuit design or component repair; the application will help users work twice as fast thanks to its instant and accurate pinout feature.
- It includes basic information to explain components for students or beginners to easily understand.
- This application is completely free, with no hidden fees or registration required.
